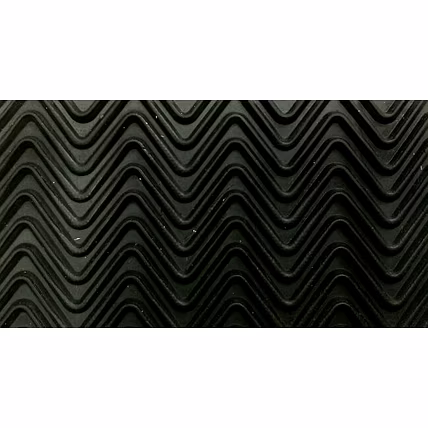

Herringbone, also known as Wavy Top or Chevron conveyor belts, are specialized rubber conveyor belts characterized by a raised pattern on their top surface. This pattern, typically V-shaped or chevron-like, is designed to enhance the grip and prevent materials from slipping or rolling back, especially when conveying on inclines. Belts with wavy impression on top, Suitable for loaders and weigh feeders & bag carrying.
Typical Specifications
Belt Width: Can range starts from 400mm
Belt Thickness: Varies, commonly from 8mm to 20mm or more.
Number of Plies: Typically 2 to 6 plies.
Fabric Type: EP (Polyester-Nylon) or NN (Nylon-Nylon) are common.
Belt Strength Rating: Ranges starting from 200 kN/m
Rubber Cover Thickness: Top cover can be up to 16mm, bottom cover up to 6mm; bare back options are also available.
Cover Grades: Available in various grades like General Purpose, Impact & Abrasion Resistant (M24, DIN-X, Y, HAR, SAR), Oil Resistant (OR), Heat Resistant (HR), Fire Resistant (FR), and combinations thereof.
Color: Typically black, but white and blue options are available for food applications.
Edge Type: Cut edge or molded edge.
Splicing Method: Hot, cold, or mechanical splicing.
Operating Temperature: Depends on the specific rubber compound used (e.g., EPDM for high temperatures).
Herringbone/Wavy Top belts offer a robust and efficient solution for material handling on inclines, significantly reducing material rollback and increasing conveying capacity
